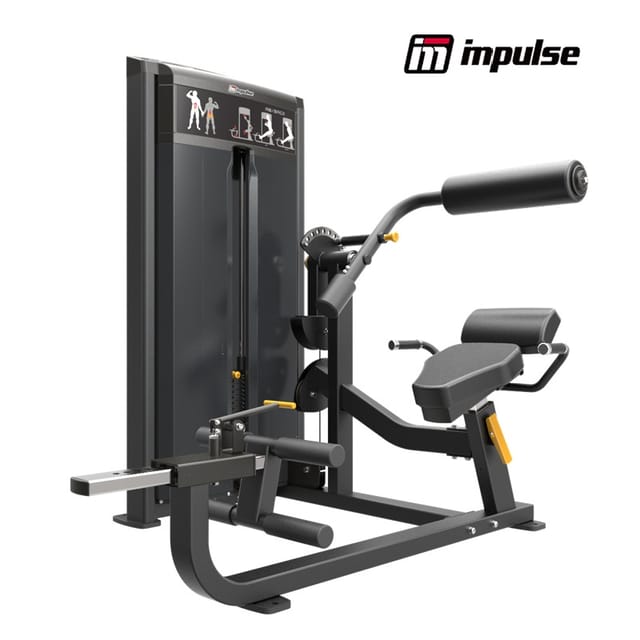

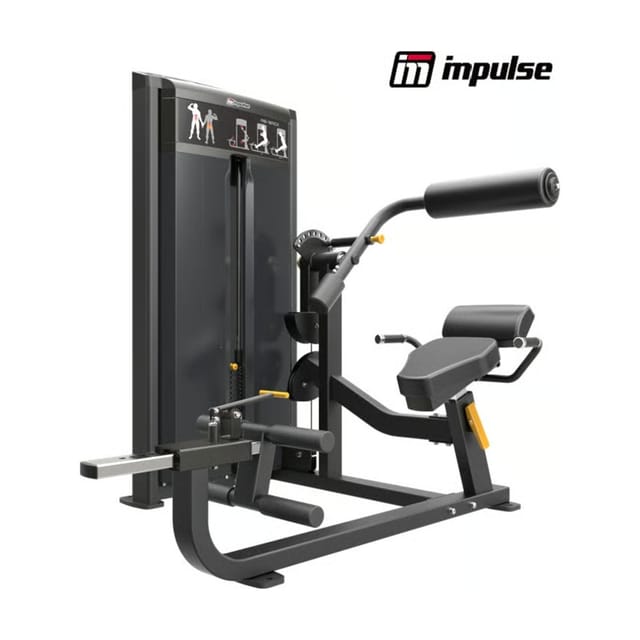

Impulse IF9334 Ab / Back Extension
https://www.fitindia.net/s/55b31c5573bc5c994472673c/6adc98b92143ea50a373832a/afton-img-impulse-if9334-ab-back-extension.jpg
SKU-IPOEOJTJNF1
| Model | IF9334 |
|---|---|
| Product Name | ABDOMINAL and BACK EXTENSION |
| Series | IF93 |
| Max User Weight | 150kg |
| Applicable Height Range | 155cm-195cm |
| Resistance | Selectorized |
| Targeted Muscle | Rectus Abdominis and Lats，Erector Spinae |
| Targeted Body Part | Abdomen and Back，Waist |
| Standard Shroud | Single-side Half Surrounded |
| Product Dimension | 1592*1253*1531mm |
| Weight Stack | 200LBS |
| multi-function | Multi-function |
| Tube Specification – U Sction | YJ50.0*110.0*2.5 □50.8*2.5 |
| Tube Specification – Function Part | □50.0*100.0*2.5 φ50.8*2.5 □50.8*76.2*2.5 |
| Tube Specification – Connection Part | YJ65*110*2.5 |
| Tube Specification – Bottom Part | □50.8*76.2*2.5 |
| Tube Specification – Regulating Tube Part | □30.0*70.0*2.0（201 stainless steel） |
| Tube Specification – Handle Tube Part | φ25.2*2.5 |
| Color | Matt Black |
| Optional Color | Double Spray Double Coated |
| The Material of Standard Shroud | Light Grey Translucent ABS |
| Optional Shroud | Double-side Full Encompassing/Single-side Half Height |
| The Material of Optional Shroud | Light Grey Translucent ABS |
| Upholstery Stitching | Black+Single Stitches |
| Upholstery Stuffing | Polymer+Foams |
| Training Instruction | 2D Diagram |
| Seat adjustment | Compression-type Elastic Bolt |
| Seat adjustment range | 150MM |
| Back Cushion Adjustment | / |
| Back Cushion Adjustment Range | / |
| Leg Cushion Adjustment | / |
| Leg Cushion Adjustment Range | / |
| Foam Adjustment | Draw-out Elastic Bolt |
| Foam Adjustment Range | 90°，15°(1 Level) |
| Thickness of Back Cushion | 70mm |
| Leg Cushion Specification | φ129mm |
| Other Adjustment | Pedal Adjustment Compression-type Elastic Bolt |
| Transmission Cable | Domestic Cable、φ5 |
| Handle Bar Type | Circular Tube Handle |
| Handle Bar Cover | TPV（Both ends with aluminum baffle ring and aluminum head） |
| Main Pulley Material | PA6+30%GF |
| Guide Rod Specification | φ19mm Solid |
| Guide Rod Material | Hard Chromium Plating in Steel |
| Standardized Parts | Medium Carbon Steel(8.8 Grade、Galvanization) |
| Main Bearing | GB2766005-2ZC3 |
| Gross Weight | / |
| Number of Packages | 3 |
| Packaged Form | Carton |
Up to 150kg200LBS stackSelectorized
Common questions
What is the maximum user weight?
150kg.
How much space does it need?
Its dimensions are 1592*1253*1531mm.
Want to see it in person or need a quote?Visit one of 50+ Afton dealers or message us on WhatsApp with your city so we can connect you with your nearest Afton dealer.
in stock
INR
168787
Impulse
Email ID already exists!
You have reached the maximum quantity of this product.
- Home
- Impulse Fitness
- Impulse IF9334 Ab / Back Extension
Impulse IF9334 Ab / Back Extension
By IMPULSE
Trusted Seller
Genuine products • verified sourcing
Fast Dispatch
Quick shipping options available
Support
Installation • service • spares guidance
Sold By:
Afton Fitness
| VARIANT | SELLER | PRICE | QUANTITY |
|---|
Impulse IF9334 Ab / Back Extension
Trusted Seller
Genuine products • verified sourcing
Fast Dispatch
Quick shipping options available
Support
Installation • service • spares guidance
Brand: Impulse
QTY:
Description of product
| Model | IF9334 |
|---|---|
| Product Name | ABDOMINAL and BACK EXTENSION |
| Series | IF93 |
| Max User Weight | 150kg |
| Applicable Height Range | 155cm-195cm |
| Resistance | Selectorized |
| Targeted Muscle | Rectus Abdominis and Lats，Erector Spinae |
| Targeted Body Part | Abdomen and Back，Waist |
| Standard Shroud | Single-side Half Surrounded |
| Product Dimension | 1592*1253*1531mm |
| Weight Stack | 200LBS |
| multi-function | Multi-function |
| Tube Specification – U Sction | YJ50.0*110.0*2.5 □50.8*2.5 |
| Tube Specification – Function Part | □50.0*100.0*2.5 φ50.8*2.5 □50.8*76.2*2.5 |
| Tube Specification – Connection Part | YJ65*110*2.5 |
| Tube Specification – Bottom Part | □50.8*76.2*2.5 |
| Tube Specification – Regulating Tube Part | □30.0*70.0*2.0（201 stainless steel） |
| Tube Specification – Handle Tube Part | φ25.2*2.5 |
| Color | Matt Black |
| Optional Color | Double Spray Double Coated |
| The Material of Standard Shroud | Light Grey Translucent ABS |
| Optional Shroud | Double-side Full Encompassing/Single-side Half Height |
| The Material of Optional Shroud | Light Grey Translucent ABS |
| Upholstery Stitching | Black+Single Stitches |
| Upholstery Stuffing | Polymer+Foams |
| Training Instruction | 2D Diagram |
| Seat adjustment | Compression-type Elastic Bolt |
| Seat adjustment range | 150MM |
| Back Cushion Adjustment | / |
| Back Cushion Adjustment Range | / |
| Leg Cushion Adjustment | / |
| Leg Cushion Adjustment Range | / |
| Foam Adjustment | Draw-out Elastic Bolt |
| Foam Adjustment Range | 90°，15°(1 Level) |
| Thickness of Back Cushion | 70mm |
| Leg Cushion Specification | φ129mm |
| Other Adjustment | Pedal Adjustment Compression-type Elastic Bolt |
| Transmission Cable | Domestic Cable、φ5 |
| Handle Bar Type | Circular Tube Handle |
| Handle Bar Cover | TPV（Both ends with aluminum baffle ring and aluminum head） |
| Main Pulley Material | PA6+30%GF |
| Guide Rod Specification | φ19mm Solid |
| Guide Rod Material | Hard Chromium Plating in Steel |
| Standardized Parts | Medium Carbon Steel(8.8 Grade、Galvanization) |
| Main Bearing | GB2766005-2ZC3 |
| Gross Weight | / |
| Number of Packages | 3 |
| Packaged Form | Carton |
Up to 150kg200LBS stackSelectorized
Common questions
What is the maximum user weight?
150kg.
How much space does it need?
Its dimensions are 1592*1253*1531mm.
Want to see it in person or need a quote?Visit one of 50+ Afton dealers or message us on WhatsApp with your city so we can connect you with your nearest Afton dealer.
| Model | IF9334 |
|---|---|
| Product Name | ABDOMINAL and BACK EXTENSION |
| Series | IF93 |
| Max User Weight | 150kg |
| Applicable Height Range | 155cm-195cm |
| Resistance | Selectorized |
| Targeted Muscle | Rectus Abdominis and Lats，Erector Spinae |
| Targeted Body Part | Abdomen and Back，Waist |
| Standard Shroud | Single-side Half Surrounded |
| Product Dimension | 1592*1253*1531mm |
| Weight Stack | 200LBS |
| multi-function | Multi-function |
| Tube Specification – U Sction | YJ50.0*110.0*2.5 □50.8*2.5 |
| Tube Specification – Function Part | □50.0*100.0*2.5 φ50.8*2.5 □50.8*76.2*2.5 |
| Tube Specification – Connection Part | YJ65*110*2.5 |
| Tube Specification – Bottom Part | □50.8*76.2*2.5 |
| Tube Specification – Regulating Tube Part | □30.0*70.0*2.0（201 stainless steel） |
| Tube Specification – Handle Tube Part | φ25.2*2.5 |
| Color | Matt Black |
| Optional Color | Double Spray Double Coated |
| The Material of Standard Shroud | Light Grey Translucent ABS |
| Optional Shroud | Double-side Full Encompassing/Single-side Half Height |
| The Material of Optional Shroud | Light Grey Translucent ABS |
| Upholstery Stitching | Black+Single Stitches |
| Upholstery Stuffing | Polymer+Foams |
| Training Instruction | 2D Diagram |
| Seat adjustment | Compression-type Elastic Bolt |
| Seat adjustment range | 150MM |
| Back Cushion Adjustment | / |
| Back Cushion Adjustment Range | / |
| Leg Cushion Adjustment | / |
| Leg Cushion Adjustment Range | / |
| Foam Adjustment | Draw-out Elastic Bolt |
| Foam Adjustment Range | 90°，15°(1 Level) |
| Thickness of Back Cushion | 70mm |
| Leg Cushion Specification | φ129mm |
| Other Adjustment | Pedal Adjustment Compression-type Elastic Bolt |
| Transmission Cable | Domestic Cable、φ5 |
| Handle Bar Type | Circular Tube Handle |
| Handle Bar Cover | TPV（Both ends with aluminum baffle ring and aluminum head） |
| Main Pulley Material | PA6+30%GF |
| Guide Rod Specification | φ19mm Solid |
| Guide Rod Material | Hard Chromium Plating in Steel |
| Standardized Parts | Medium Carbon Steel(8.8 Grade、Galvanization) |
| Main Bearing | GB2766005-2ZC3 |
| Gross Weight | / |
| Number of Packages | 3 |
| Packaged Form | Carton |
Up to 150kg200LBS stackSelectorized
Common questions
What is the maximum user weight?
150kg.
How much space does it need?
Its dimensions are 1592*1253*1531mm.
Want to see it in person or need a quote?Visit one of 50+ Afton dealers or message us on WhatsApp with your city so we can connect you with your nearest Afton dealer.
