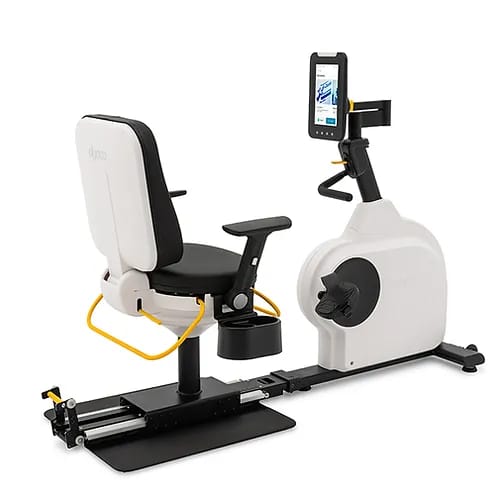

66dec3c4b82269002b32148a Dyaco 8.5R Rehabilitation Bike https://www.fitindia.net/s/55b31c5573bc5c994472673c/66dec38bb2dbf700246a1e0c/9ab980_3380f61475c440018b575ccd4660c8d7-mv2.jpg

The 8.5R places a focus on enhancing hip and lower body joint mobility, thereby facilitating more effective rehabilitation
within a comfortably relaxed posture. It introduces groundbreaking neurological programs such as Symmetry
and Power Distribution, which contribute to accelerated recovery processes. The newly revamped 8.5R features a fully
adjustable seat that can be easily removed, allowing convenient wheelchair access.
The 8.5R offers a choice of three workload options, including Constant Power, Isokinetic, and Constant Resistance,
alongside the inclusion of the Wingate Test program and Power Distribution program, the system is further augmented
by a user-friendly 10-inch touch panel console with versatile multi-connectivity protocols. These combined features
provide significant advantages for both therapists and patients, enhancing the quality of care and the rehabilitation
experience.

Timer Program
A quick set-up, large font, egg timer type display for patient warm-ups.

Symmetry
The Symmetry program is designed to assess and quantify the balance of power
between the left and right legs throughout the rotation. This program delivers both a
graphic and numeric representation of leg power symmetry.

Wingate Test Program
The industry standard for evaluating power output and fatigue rates during anaerobic assessments.

Power Distribution Program
The program offers a visual representation of power distribution in watts throughout
the pedal rotation, providing valuable insights into the patient's performance.

Magnetic Resistance System
Our system offers a low start-up threshold, delivering a wide range of smooth,
comfortable, and highly precise resistance levels.

Bidirectional Resistance
This functionality allows for pedaling in both forward and reverse directions,
enabling immediate retro-cycling to diversify exercise options.

Workload Modes
Catering to various rehabilitation needs, users can choose from three distinct
workload options: Constant Power, Isokinetic, and Constant Resistance.

Manual Mechanical Brake Lever
Providing an added layer of control and safety, users can now activate the manual
mechanical brake lever by simply pressing down.

Auto-braking
We put user safety in front of anything. Equipped with advanced sensing technology
and software, our system automatically halts the flywheel when it detects the
user's attempt to stop pedaling. It is achieved by applying a braking force to
eliminate pedal inertia.

Adjustable Crank Arm (Optional)
For patients with limited mobility or injuries, the pedal crank arms can be
adjusted to accommodate a restricted range of movement, ensuring a tailored rehabilitation.

The whole new 8.0 Series comes furnished with a 10" touch panel console, providing direct access to the Dyaco Insight cloud computing
platform for data analytics. The Beacon, positioned on top of the console, employs vividly colored lights to assess exercise intensity and
offer physical therapists an immediate visual cue regarding their patients' advancement. The broad connection, wireless capabilities,
multiple access login, and real-time streaming data transfer are all integrated features designed to amplify therapists' productivity and
support patients' rehabilitation outcomes.

360-Degree Articulating Arm
This feature allows clinicians to manipulate the console from any position around the machine, ensuring both a suitable
distance and angle for optimal patient observation.

Beacon
Utilizing vibrant lights positioned atop the console, the Beacon efficiently assesses exercise intensity and provides a quick
visual signal to physical therapists regarding their patients' progress. The Beacon can be configured to display information
such as the remaining Program Time, Power level, Exercise goals, or Heart Rate percentage.

Wireless Connectivity
With Wi-Fi, the console can connect to Dyaco Insight, two Bluetooth channels for wireless heart rate devices and
third-party apps, as well as ANT+ compatibility.

Broad Connection
The console offers versatile connectivity options, including hardwired connections for data streaming to PCs and links to
external devices like cardiac stress testing systems.

Specifications

Quick Start FeaturesQuick Start, Timer
ProgramsManual / Hill / Plateau / HIIT / Facility / Heart Rate Target / Calories Target / METs Target /Wingate Test / YMCA / Astrand Rhyming / Conconi Test / Steep Ramp Test / Power Distribution
Premium FeaturesSymmetry
Workload OptionIsokinetic, Watt Control, Constant Resistance
Workload Range5 to 1200 Watts
Resistance Level1 to 100 Levels
Resistance TypeMagnetic Resistance System
10.1" Touch Panel ConsoleYes
Beacon (Color change based on Time,
Progress or Goals )
Yes
Data TransferYes
Wireless TX/RX (BLE FTMS, ANT+)Yes
Wireless TX/RX (Wi-Fi)Yes
Comm. Port - NFC (for log in)Yes
Comm. Port - RS232 (for Cardiac Stress Test)Yes
Comm. Port - USB Type B (for Cardiac
Stress Test & Data Transfer)
Yes
Bi-Directional ResistanceYes
Adjustable Crank Length SetOption
Fore/Aft/Rotate SeatYes
Power90 - 240 V AC
Max User Weight Capacity200 kg (440 lbs.)
SKU-CHU8CEOMN
in stockINR 200000
