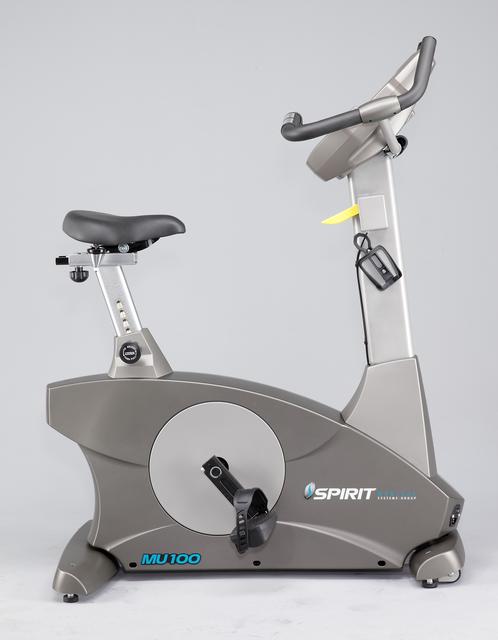

Overview
Eleven (11) programs, easy-to-read display feedback, visual biofeedback promotes biomechanical and neuro-muscular symmetry. Programs can be adapted to a patient's characteristics to maximize their rehabilitative regimen. ADVANTAGES AND CLINICAL APPLICATIONS
CLOSED KINETIC CHAIN
Begin exercise earlier, safely, and impact free within the pain free ROM thereby reducing the patient's "fear factor"
PATIENT POSITIONING
Incrementally adjustable up/down, fore/aft seat, and pedal crank for easy patient set-up
BOTH DIRECTIONS
Active and passive movement in both directions
BI-LATERAL SYMMETRY
Monitoring assists in improving limb deficiencies and walking gait
APPLICATIONS INCLUDE:
Patients with patella femoral conditions, total knee replacements, ACL, MCL, and PCL repairs, other ligamentous repairs, arthritic conditions, tendonitis, and many more conditions will benefit
ELECTRONICS AND SOFTWARE FEATURES
1.
Intuitive interface for ease of operation
2.
Unique knee angle data input allows entry of desired ROMs to determine seat and pedal crank settings minimizing the guess work
3.
Set-up mode allows quick entry of patient data, resistance resolution, settings, and how the information is displayed
4.
Large, easy-to-read displays: Time, RPM, Watts, Calories, METs, Heart Rate, Power, and much more
5.
6.
Multiple Programs include: Quick Start, Manual Mode, Preset Hill, Plateau, and Interval profiles; Custom Facility protocol program, VO2 sub-max YMCA protocol, Isokinetic speed based resistance (from 25 to 100 RPM)
Unique Symmetry program that measures and displays power around the pedal stroke. Biofeedback encourages patients to maintain power between right and left leg
TECH SPECS
Power: 90 to 240 volts AC (Universal Power Supply)
Overall dimentions: 42.5”L x 22.5”W x 54.5”H
(108cm x 57cm x 138cm)
Net Weight: 119 lbs (54 kg)
Max user weight: 440 lbs (200 kg)
Certifications: ISO 13485, IEC 60601-1-2, RoHS, FDA Listed
Power Train: |
| a. | Heavy duty, 8 groove poly-v belt for smooth, quiet operation |
| b. | Dual spring loaded idlers provide a low start-up resistance and forward/reverse pedaling motion |
| c. | Pedal to brake ratio provides smoother pedaling motion |
Braking Device: |
| a. | Electro-magnetic resistance allows for very small increments of work-loads (5 watts per level at 60 rpm, 2 watts per level at 30 rpm)
|
| b. | Dual electromagnets provide a controlled isokinetic resistance and our unique Dynamic Braking mode |
WARRANTY INFORMATION
ELECTRONICS
MECHANICS
WEARABLE ITEMS
Labour
2 Years
2 Years
2 Years
2 Years
