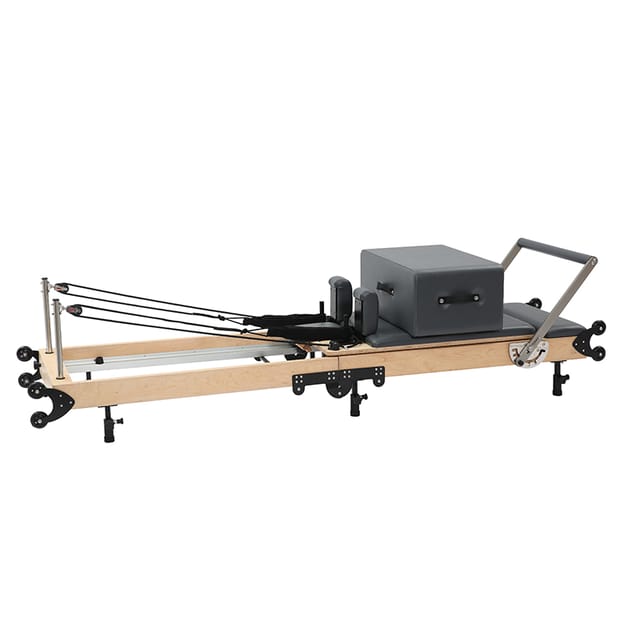

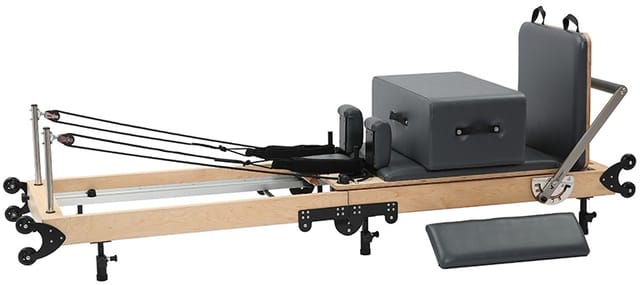

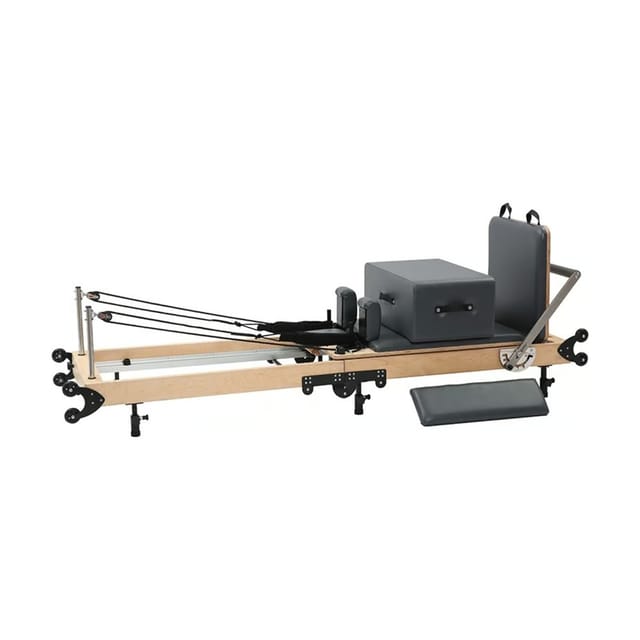

Afton Luma Foldable Reformer
Core Construction
Frame MaterialHigh-grade North American maple
FinishSanded and polished 6 times, sealed with thick wood wax oil
Design FeatureFoldable base frame for easy transport and compact storage
Platform Height11"/13" (adjustable using star nut and gear lock)
Foot LevelingAdjustable feet ensure ground contact for balance
Handling WarningDo not clean wood with wet cloth; dry cloth only
Dimensions & Weight
| Reformer Size | 249 cm × 61.5 cm × 20/25 cm |
|---|---|
| Net Weight | 75 kg (165 lb) |
| Gross Weight | 105 kg (231 lb) |
| Shipping Size | 145 cm × 73 cm × 60 cm (57” × 29” × 24”) |
| Packaging | Durable plywood crate |
Resistance & Spring System
Total Springs5 1 × Red – Heavy (60 lb) 2 × Blue – Medium (26 lb) 2 × Yellow – Light (19 lb)
Resistance Levels3-level gear bar adjustment system
Spring OriginImported from Japan (piano wire steel)
Spring Lifespan2 years or 3,000 hours (replace earlier if deformed or corroded)
Functional Elements
TrackAviation-grade aluminum, thick and smooth with low-friction glide
Carriage SystemHigh-precision wheel and track for silent movement
HeadrestAdjustable
Shoulder RestsInsertable and secure with firm attachment
FootbarMulti-position adjustable; must support jumpboard if used
JumpboardCompatible; must always be used with handle bar support
PulleysSmooth-glide, adjustable tower columns with 3 stop positions
Ropes & HandlesClimbing-grade ropes with silent loop straps Dual loop handles with secure stitching
Folding Mechanism
-
Folding Steps:
-
Remove both side fenders
-
Hang spring to top gear
-
Adjust bar to final gear
-
Grip the handle and raise the unit vertically
-
-
Important Warning: Do not attempt folding without fender removal; may cause frame damage
-
Storage Position: Fold vertically; place on even ground and away from heavy activity
Safety Standards
Keep 1-meter clearance on all sides when in use
Always attach at least one spring when not in use
Never use without supervision if unfamiliar with reformer movement
Check for loose screws, nuts, shoulder rests, and springs before each session
Maintenance
DailyDust wipe track, check rope fray, inspect springs
MonthlyTighten all screws, nuts, bolts, especially under carriage and headrest
Upholstery CareAvoid sharp objects or jewelry while using; clean with a dry cloth only
Wood MaintenanceAvoid sun exposure and never use water-based cleaning
Tower ColumnLock securely using nut and ball-gear safety system
Warranty
-
Frame, Platform, Springs: 1 year
-
Wear Parts (ropes, straps, wheels): 6months
-
Upholstery: 90 days (material defect only – excludes scratches, stains, cuts)
Ideal For
-
Compact studios needing space-saving options
-
At-home Pilates enthusiasts seeking tower versatility
-
Multi-function setups with limited floor area
-
Traveling instructors or physiotherapy units
Why the Luma Folding Reformer Stands Out
Premium maple + aviation alloy + Japanese springs
Studio-level functionality in a compact, mobile frame
Smart design, silent glide, and 3-level resistance system make it one of the best foldables available
